Silicone Sealing Strip for Automobile Engine and Door

Model No.
SEP8660-40, SEP8660-50, SEP8660-60, SEP8660-70

Product Description

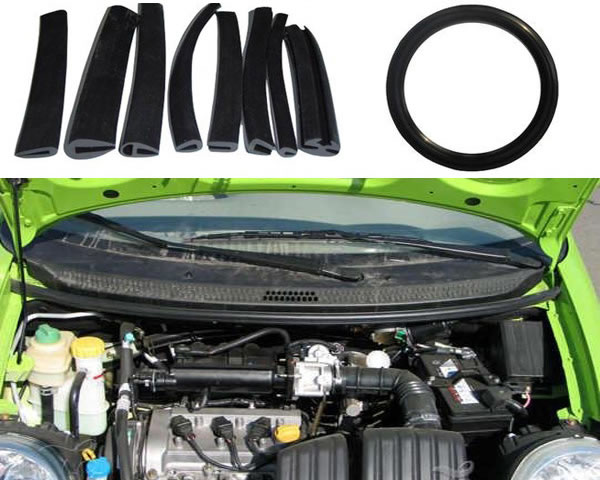

This silicone sealing strip is a modified silicone EPDM. It features high temperature resistance and good weatherproof property, as well as the superior mechanical properties inherited from EPDM. This silicone material is used to make sealing strips for automobile engines and doors.

Keep sealed and store under cool, dark conditions.

Mix it with appropriate peroxide according to specific proportion and then apply extrusion molding.

The silicone sealing strip for automobile engines and doors is packed in 20kg cartons.

Typical Property
Physical properties Test method Unit SEP8660-40 SEP8660-50 SEP8660-60 SEP8660-70
SHORE Hardness D2204 A 40 50 60 70
Tensile strength D412 MPa 8 9 9 8.5
Elongation at Break D412 % 600 550 450 380
Tear strength D624B KN/m 15 18 17 15
Compression set DIN53517 % 25 24 25 26
Curing condition With 1.5% C-2, curing for 10 minutes at 130 ℃

The above technical properties are for reference only. For detailed molding conditions, please contact us directly.

As an experienced silicone sealing strip for automobile engine and door manufacturer and supplier based in China, SQUARE Silicone Materials Company provides a wide range of silicone materials for different applications. Besides silicone sealing strip for automobile engines and doors, we also provide additive and high voltage insulators. They are commonly used in such fields as electronic products, electric power, medical instruments, baby products, kitchenware, automobiles, textiles, mechanical engineering, and other consumer products.
