UL-94-V0 Flame Retardant LSR

Model No.

Product Description

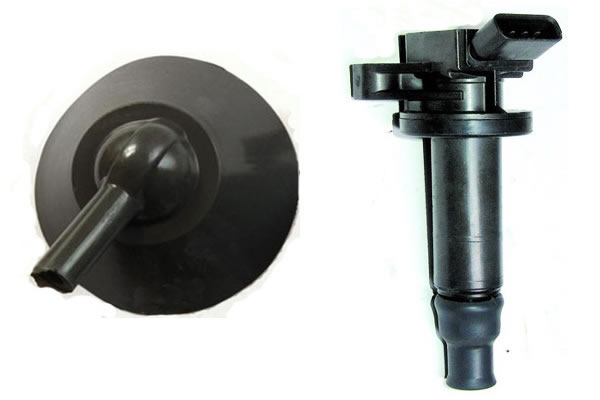

This two-component platinum catalyzed liquid silicone rubber is manufactured in strict compliance with UL-94-V0 standard. Since it is highly flame retardant and features good thermal resistance, this LSR is used to make ignition coils, high voltage caps, etc.

Keep sealed and store in cool, dry and dark place.

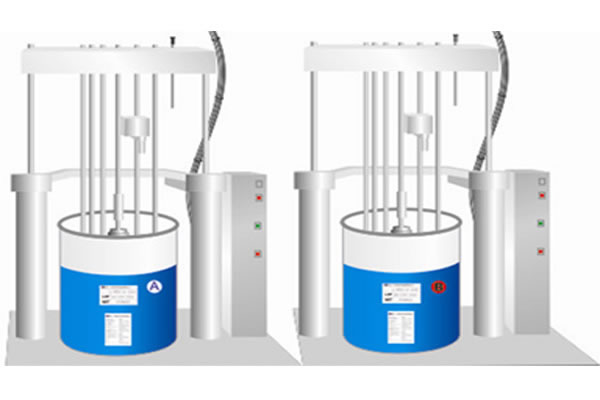

Use a static mixer to mix the two components, A and B, with a ratio of 1:1. Feed the mixture directly into an injection molding machine.

The flame retardant LSR is packed in 20kg or 200kg barrels.

Typical Property
Physical properties Test method Unit LIM1962-50A/B LIM1962-60A/B
Appearance (Color) A: Transparent
B: Gray black
A: Transparent
B: Gray black
Specific gravity D792 1.26 1.32
SHORE Hardness D2204 A 50 60
Tensile strength D412 7.5 6.5
Tear strength D624B KN/m 20 20
Elongation at Break D412 % 450 380
Tension set D412 DIE C % 5.0 5.0
Linear shrinkage JISK 6301 % 2 2
Flame retardant rating UL 94 v-0 v-0

The above technical properties are for reference only. For detailed molding conditions, please contact us directly.

As a professional UL-94-V0 flame retardant LSR manufacturer and supplier based in China, SQUARE Silicone Materials Company is able to offer you silicone materials of different specifications. In addition to UL-94-V0 flame retardant LSR, we can also produce many other silicone materials, like food grade silicone, high voltage insulator, etc. All of them are provided with reliable quality and at competitive prices.
