High Voltage Insulation (HVI) Power cable Accessories LSR

Model No.

Product Description

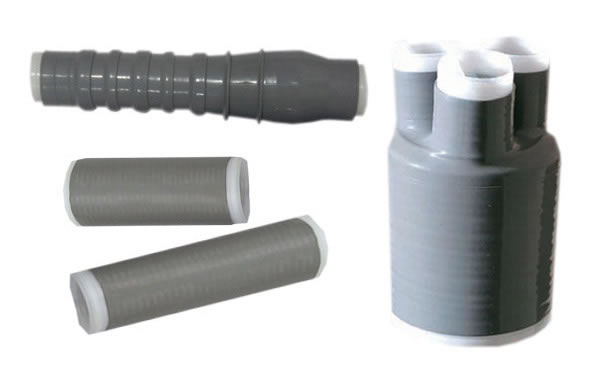

The High Voltage Insulation (HVI) Power cable Accessories LSR is a two-component platinum catalyzed voltage resistant liquid silicone rubber. The two components of this product, termed A and B, are transparent and gray respectively, and the mixing ratio for A:B should be 1:1. Our HVI Power cable Accessories LSR features high extensibility, good proof tracking index, high tear resistance, excellent electric performances, etc. It supports injection molding, fast vulcanization, and can withstand high voltages. This LSR is generally applied to 66, 110, 220KV cold shrinkage termination, insulation tube, joint and breakout etc.

Keep sealed and store in a cool place below 30℃ before usage. It has a shelf life of 12 months.

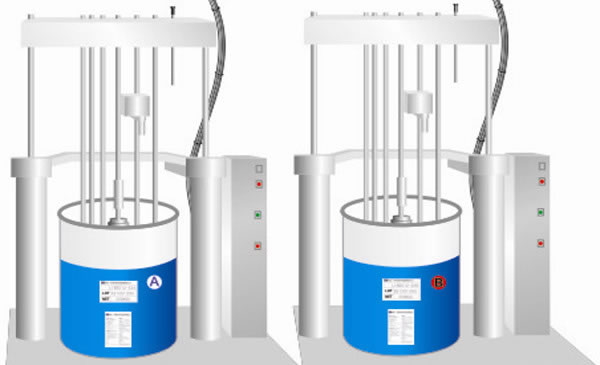

When operate, part A and B can be injected directly to the heated mold from the original containers by mean of a metering and mixing unit. At the mold temperature of 90-150℃, silicone rubber cures within minutes according to the size. The pot life is 3-7days after mixing under 23℃. Clean pipe and machine when machine stoped for long time.

Our HVI Power cable Accessories LSR is packed in a 20kg or 200kg barrel.

Typical Properties
Before curing Physical properties Test method Unit HVI1658-40A/B
Appearance (Color) Transparent for A, gray for B
Solid content % 100
Viscosity DIN53019 mPa.s (8 ~ 10)×104
After curing Specific gravity D792 1.13
SHORE Hardness D2240 A 44 ~ 46
Tensile strength D412 MPa ≥9.0
Elongation at Break D412 % ≥750
Tear strength D624B KN/m ≥40
Tension Set: Keep 300% extension for 15 hrs at 120 ℃ D412 DIE C % < 8
Volume resistivity IEC60093 Ω.cm 1.0×1015
Dielectric constant IEC60250 2.8
Dissipation factor IEC60250 0.0016
Tracking resistance IEC60587 grade 1A 4.5
Dielectric strength IEC60243 KV/mm 26

The viscosity is measured by NDJ-79 rotary viscosimeter Molding condition: High pressure curing for 10 minutes at 140℃. Vulcanization condition: Curing for four hours at 180℃ GB stands for Chinese national standard. The above technical properties are for reference only. For detailed molding conditions, please contact us directly.

We are a China-based HVI Power cable Accessories LSR manufacturer. These products come with high quality and low prices. Therefore, they are welcomed by our customers in India, Malaysia, Thailand, Korea, Pakistan, Egypt, Turkey, Nigeria, Poland, Ukraine, the United Kingdom, the United States, Australia, Brazil, Chile, Mexico, Taiwan, and more. Please feel free to contact us, if you are looking for LSR for Insulator.
