Medium Voltage Cold Shrinkable Power Cable Accessories LSR

Model No.
LIM1510-35A/B, LIM1510-45A/B

Product Description

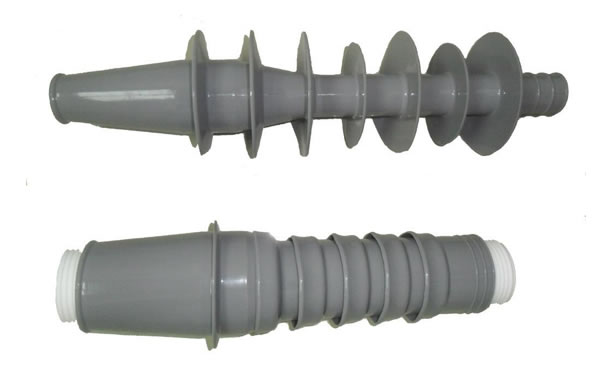

The medium voltage Cold Shrinkable Power Cable Accessories LSR is a two-component platinum catalyzed liquid silicone rubber. The two components of this product, termed A and B, are transparent and grey respectively, and the mixing ratio for A:B should be 1:1. The tracking resistance of this LSR is class 1A3.5 according to IEC60587 standard. Our Cold Shrinkable Power Cable Accessories LSR features high extensibility, good anti-tracking index, high tear resistance, etc. It supports injection molding and fast vulcanization. This LSR is used to Cold shrinkage termination, insulation tube, joint and breakout, etc.

Keep sealed and store in a cool place below 30℃ before usage. It has a shelf life of 12 months.

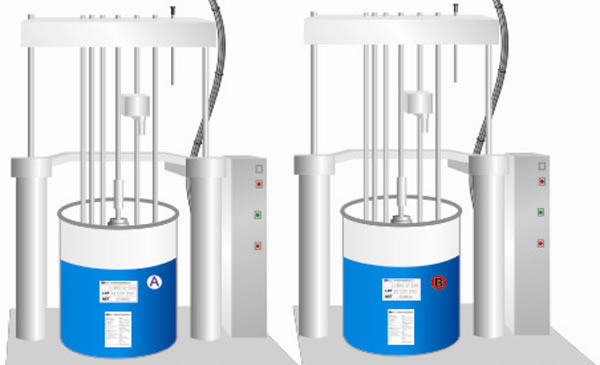

When operate, part A and B can be injected directly to the heated mold from the original containers by mean of a metering and mixing unit. At the mold temperature of 90-150℃, silicone rubber cures within minutes according to the size. The pot life is 3-7days after mixing under 23℃. Clean pipe and machine when machine stoped for long time.

Our Cold Shrinkable Power Cable Accessories LSR is packed in a 20kg or 200kg barrel.

Typical Specification
Before curing Physical properties Test method Unit LIM1510-35A/B LIM1510-45A/B
Appearance (Color) Transparent for A, gray for B
Solid content % 100 100
Viscosity DIN53019 mPa.s (40 ~ 80)×104 (40 ~ 80)×104
After curing Specific gravity D792 1.13 1.13
SHORE Hardness D2240 A 34 ~ 37 34 ~ 37
Tensile strength D412 MPa ≥ 8.5 ≥ 8.5
Elongation at Break D412 % ≥ 800 ≥ 800
Tear strength D624B KN/m ≥ 30 ≥ 30
Tension Set: Keep 300% extension for 15 hrs at 120 ℃ D412 DIE C % ≤ 8 ≤ 8
Volume resistivity IEC60093 Ω.cm 1.9×1014 1.0×1015
Dielectric constant IEC60250 2.8 2.8
Dissipation factor IEC60250 0.0016 0.0016
Tracking resistance IEC60587 grade 1A3.5 1A4.5
Dielectric strength IEC60243 KV/mm 26 26

The viscosity is measured by NDJ-79 rotary viscosimeter Molding condition: High pressure curing for 10 minutes at 140℃ Vulcanization condition: Curing for four hours at 180℃ GB stands for Chinese national standard. The above technical properties are for reference only. For detailed molding conditions, please contact us directly.

SQUARE Silicone is a liquid silicone materials manufacturer and supplier, based in China. As a result of their high quality and low prices, our products are very popular with customers in many countries, such as India, Malaysia, Thailand, Korea, Pakistan, Egypt, Turkey, Nigeria, Poland, Ukraine, the United Kingdom, the United States, Australia, Brazil, Chile, Mexico, Taiwan, and so on.
